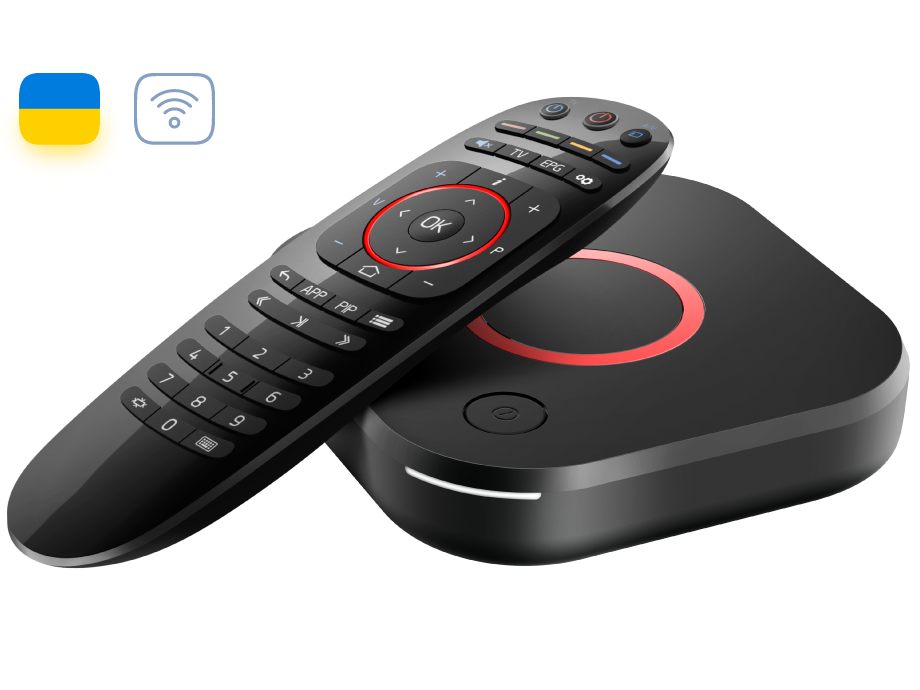

MAG524w3: a 4K capable Linux set-top box with HEVC support

A fifth-generation IPTV STB made by Infomir is called the MAG524w3. It offers 60 fps playback of 4K HDR video. Even with sluggish Internet rates, the gadget can playback high-quality online video thanks to HEVC support.

The quad-core ARM Cortex-A53 CPU found in the Amlogic S905X2 chipset, which powers the set-top box, enables it to operate at up to 18,400 DMIPS. The STB has 4 GB of internal storage and 1 GB of RAM.

The eight-channel Dolby Digital PlusTM audio format is supported by MAG524w3. To enjoy surround sound, simply connect your set-top box to a TV or audio system that is compatible.

A built-in dual-band Wi-Fi module or a 100 Mbit/s Ethernet port can be used to connect the STB to the Internet (2.4 GHz and 5 GHz). The wireless connection offers up to 550 Mbit/s of data transfer speed.

An external hard drive connected through one of the two USB ports can play content (2.0 and 3.0). Through these ports, peripherals like keyboards and mice can also be installed.

Technology for the best user experience

  • 4K and HEVC support
  • 1 GB RAM
  • 4 GB eMMC
  • Wi-FI
  • Quad-core ARM Cortex-A53

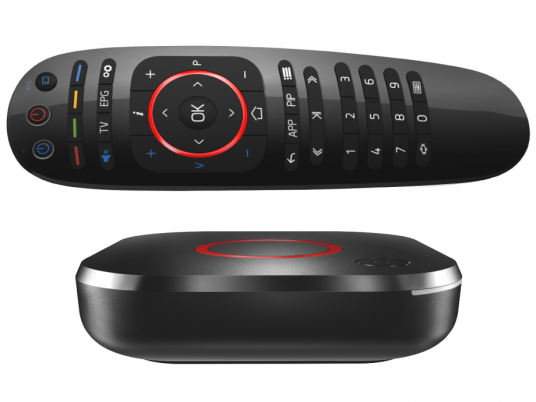

  • User-friendly IR remote

MAG524w3 specifications

Audio and video

  • Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formats MP3, OGG, WAV, AAC
  • Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
  • Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formats JPEG, PNG, BMP, RAW
  • Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formats M3U, M3U8, PLS, CUE

Hardware features

  • Chipset Amlogic S905X2
  • Performance 18,400 DMIPS
  • CPU Quad-core ARM Cortex-A53
  • RAM 1 GB DDR3
  • Storage 4 GB eMMC

Software and CAS/DRM

  • OS Linux 4.9
  • DRM/CAS on request
  • Middleware Pre-integrated Ministra TV platform. We can integrate the operator’s applications into the image and customize or replace the image.

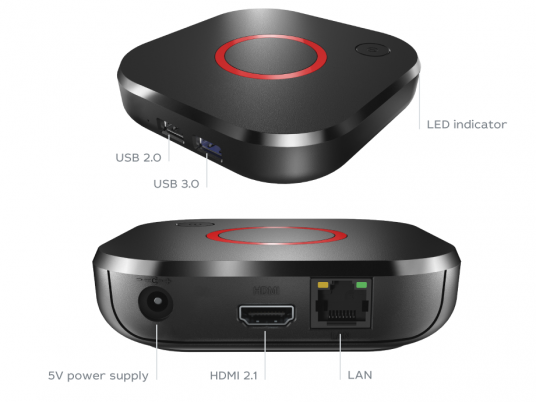

Interfaces

  • Digital ports HDMI 2.1
  • Ethernet 100 Mbps
  • USB 1 × USB 2.0, 1 × USB 3.0
  • Bluetooth
  • Wi-Fi Built-in 2T2R ac

Power

  • Power supply unit DC 5 V, 2 A

Dimensions

  • Width/depth/height 115 х 115 х 28 mm
  • Weight 170 g

MAG524w3 reviews

Rate the product:

MAG524w3 specifications

Audio and video

  • Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formats MP3, OGG, WAV, AAC
  • Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
  • Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formats JPEG, PNG, BMP, RAW
  • Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formats M3U, M3U8, PLS, CUE
Read more

What you need to know about Linux STBs

  • WHAT CONTENT SOURCES ARE THERE FOR VIEWING ON LINUX STBS?
    Connect to your Internet provider’s IPTV/OTT service or subscribe to an external operator that provides this service to watch video and listen to audio content. Also, you can load your M3U, M3U8, PLS, or CUE playlists to the STB, while their content will be loaded from the Internet automatically.
    A server in your local network or external storage, such as a hard drive, are possible alternative content sources.
  • WHAT TVS CAN CONNECT TO LINUX STBS?
    MAG STBs are compatible with any TV that has an HDMI port. The devices can work with older TVs equipped with composite RCA connectors, but you will need an additional adapter to connect them.
  • WHAT COMES WITH LINUX STBS?
    The package includes the following:


      Set-top box
      IR remote control
      HDMI cable
      Power supply unit
      Two batteries for the remote control
      User manual and warranty certificate
  • DO YOU PROVIDE A WARRANTY FOR STBS?
    All MAG devices are sold with a two-year warranty. The device comes with a warranty card containing service center contacts.
  • HOW LONG CAN THIS STB RUN WITHOUT REBOOTING?
    MAG Linux set-top boxes are high-quality devices from Infomir, a European company. They can play high-quality content smoothly and consistently without rebooting or shutting down for several months.
