MAG520w3

Linux 4.9, Amlogic S905X2 chipset, 4K and HEVC support, built-in Wi-Fi module

$ 85.50
POPULAR
Ready to ship

Payment:

  • Online card payment
  • Promotional Visa card payment
  • Non-cash payment for legal entities
  • Non-cash payment for individuals

Warranty:

  • 12 months
  • Exchange/return of goods within 14 days

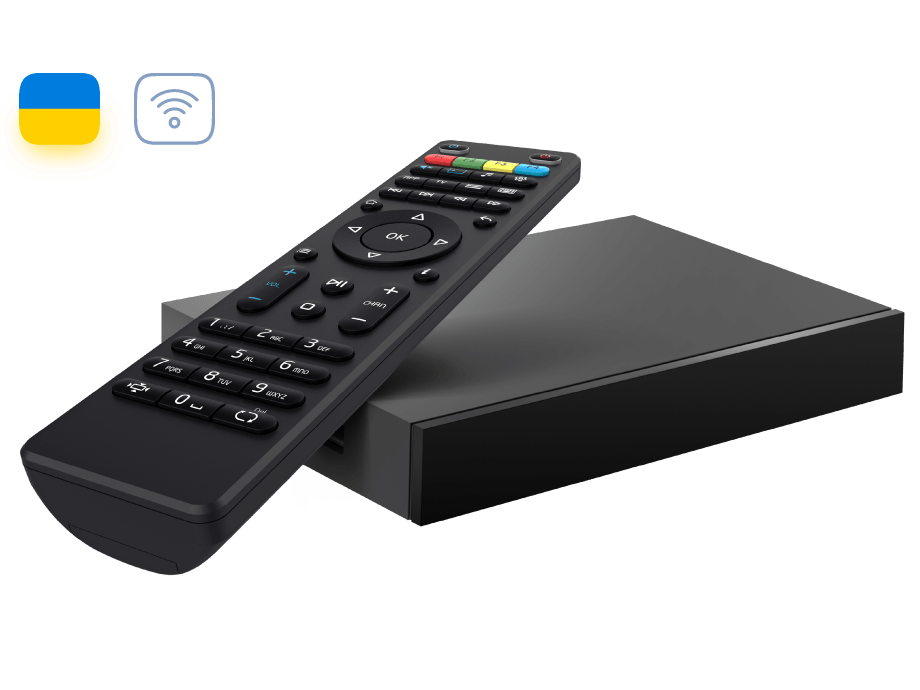

MAG520w3: a 4K capable Linux set-top box with HEVC support

A powerful IPTV STB that can play 4K HDR video at 60 frames per second is the MAG520w3. All current codecs, including HEVC, are supported by the device, which runs Linux.

The set-top box is capable of up to 18,400 DMIPS performance thanks to its robust hardware. It has a quad-core ARM Cortex-A53 CPU and an Amlogic S905X2 chipset. The device has 4 GB of internal storage and 1 GB of RAM.

The STB can be linked to a home theater audio system and supports Dolby Digital PlusTM eight-channel sound.

The device has a 100 Mbit/s Ethernet port or Wi-Fi connectivity to the Internet. The dual-band wireless interface has a maximum speed of 550 Mbit/s and can operate at 2.4 GHz or 5 GHz.

External storage devices can be attached to either of the two USB ports and used to play video on the MAG520w3 (2.0 and 3.0). Additionally, these ports can be used to connect peripherals like mice or keyboards.

The contemporary, compact style of Qubic fits very nicely with all kinds of spaces and home decoration.

Technology for the best user experience

  • 4K and HEVC support
  • 1 GB RAM
  • 4 GB eMMC
  • Wi-Fi
  • Quad-core ARM Cortex-A53
  • User-friendly IR remote

MAG520w3 specifications

Audio and video

  • Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formats MP3, OGG, WAV, AAC
  • Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
  • Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formats JPEG, PNG, BMP, RAW
  • Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formats M3U, M3U8, PLS, CUE

Hardware features

  • Chipset Amlogic S905X2
  • Performance 18,400 DMIPS
  • CPU Quad-core ARM Cortex-A53
  • RAM 1 GB DDR3
  • Storage 4 GB eMMC

Software and CAS/DRM

  • OS Linux 4.9
  • DRM/CAS On request
  • Middleware Pre-integrated Ministra TV platform. We can integrate the operator’s applications into the image and customize or replace the image.

Interfaces

  • Digital ports HDMI 2.1
  • Ethernet 100 Mbps
  • USB 1 × USB 2.0, 1 × USB 3.0
  • Bluetooth
  • Wi-Fi Built-in 2T2R ac

Power

  • Power supply unit DC 5 V, 2 A

Dimensions

  • Width/depth/height 120 × 78 × 21 mm
  • Weight 110 g

MAG520w3 reviews

Rate the product:

MAG520w3 specifications

Audio and video

  • Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
  • Audio codecs MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
  • Audio formats MP3, OGG, WAV, AAC
  • Video codecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
  • Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
  • Image formats JPEG, PNG, BMP, RAW
  • Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
  • Playlist formats M3U, M3U8, PLS, CUE
Read more

What you need to know about Linux STBs

  • WHAT CONTENT SOURCES ARE THERE FOR VIEWING ON LINUX STBS?
    Connect to your Internet provider’s IPTV/OTT service or subscribe to an external operator that provides this service to watch video and listen to audio content. Also, you can load your M3U, M3U8, PLS, or CUE playlists to the STB, while their content will be loaded from the Internet automatically.
    A server in your local network or external storage, such as a hard drive, are possible alternative content sources.
  • WHAT TVS CAN CONNECT TO LINUX STBS?
    MAG STBs are compatible with any TV that has an HDMI port. The devices can work with older TVs equipped with composite RCA connectors, but you will need an additional adapter to connect them.

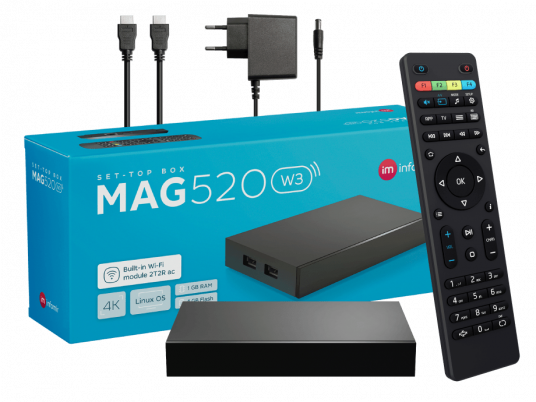

  • WHAT COMES WITH LINUX STBS?
    The package includes the following:
    Set-top box
    IR remote control
    HDMI cable
    Power supply unit
    Two batteries for the remote control
    User manual and warranty certificate
  • DO YOU PROVIDE A WARRANTY FOR STBS?
    All MAG devices are sold with a two-year warranty. The device comes with a warranty card containing service center contacts.
  • HOW LONG CAN THIS STB RUN WITHOUT REBOOTING?
    MAG Linux set-top boxes are high-quality devices from Infomir, a European company. They can play high-quality content smoothly and consistently without rebooting or shutting down for several months.
